Horizontal Honing Machine Horizontal Honing Machine

mod. LEO 120 mod. LEO 110
(LEO 120A / LEO 120AI)

DEPLIANT DEPLIANT

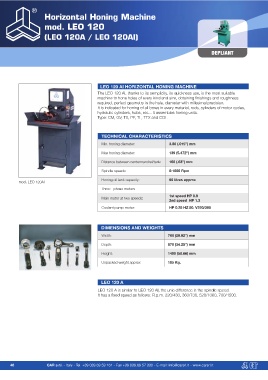

LEO 120 AI HORIZONTAL HONING MACHINE
The LEO 120 AI, thanks to its semplicity, its quickness use, is the most suitable CAR s.r.l. has extended the
machine to hone holes of every kind and size, obtaining finishings and roughness range of Horizontal Honing
required, perfect geometry in the hole, diameter with millesimal precision.
It is indicated for honing of all bores in every material, rods, cylinders of motor cycles, Machine series LEO.LEO 110 is
hydraulic cylinders, hobs, etc... It assembles honing units. a version very handy, with small
Type: CM, GV, TX, PF, TL, TTX and COL.
dimension and great versatility;
in fact, together with its
TECHNICAL CHARACTERISTICS compactness and simplicity, it

Min. honing diameter: 3.80 (.015”) mm has a motor with inverter which
permits practicalness, velocity
Max honing diameter: 139 (5.472”) mm
and excellent results about the
Distance between centermandrel/tank: 160 (.63”) mm
cilindricity and the roughness.
Spindle speeds: 0:1000 Rpm
With this system it is always
Honing oil tank capacity: 60 Iitres approx possible to change the
mod. LEO 120AI
Three - phase motors mandrel speed rotation,
1st speed HP 0.9 the stone expansion
Main motor at two speeds:
2nd speed HP 1.3 and the honer pressure,
Coolant pump motor: HP 0.25 HZ 50. V220/380 during the honing of the

piece; consequently, the
operator can make a parfect
DIMENSIONS AND WEIGHTS
selection of speed, relatively
Width: 760 (29.92”) mm
to the diameter to work. As
Depth: 870 (34.25”) mm per these characteristics, LEO
Height: 1490 (58.66) mm 110 has several applications
in different honing fields:
Unpacked weight approx 185 Kg.
from big industry to small
mechanical workshops.
LEO 120 A
LEO 120 A is similar to LEO 120 AI, the unic difference is the spindle speed.
It has a fixed speed as follows: R.p.m. 220/430, 360/730, 520/1060, 700/1500.
