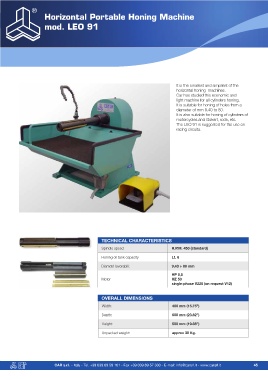

Horizontal Portable Honing Machine Horizontal Portable Honing Machine
mod. LEO 100 mod. LEO 91
DEPLIANT
TECHNICAL CHARACTERISTICS
OVERALL DIMENSIONS
TECHNICAL CHARACTERISTICS
Spindle speed
Honing oil tank capacity
Diametri lavorabili:
Motor
OVERALL DIMENSIONS
Width:
Depth:
Height:
Unpacked weight:
CAR s.r.l. - Italy - Tel. +39 039.69 59 161 - Fax +39 039.69 57 330 - E-mail: info@carsrl.it - www.carsrl.it
INDEX CAR srl - Italy - tel. (+39) 039.6959161 - fax (+39) 039.6957330 - http://www.carsrl.it - e-mail: info@carsrl.it PREVIOUS NEXT 41 INDEX CAR srl - Italy - tel. (+39) 039.6959161 - fax (+39) 039.6957330 - http://www.carsrl.it - e-mail: info@carsrl.it PREVIOUS NEXT 45
It is the smallest and simpliest of the
horizontal honing machines.
Car has studied this economic and
light machine for all cylinders honing.
It is suitable for honing of holes from a
diameter of mm 9.40 to 80.
It is also suitable for honing of cylinders of
motorcycles and Gokart, rods, etc.
The LEO 91 is suggested for the use on
racing circuits.
R.P.M. 450 (standard)P.M. 450 (standard)P
Lt. 6
9,40 ÷ 80 mm
HP 0,5
HZ 50
single-phase V220 (on request V12)
400 mm (15.75”)
600 mm (23.62”)
500 mm (19.68”)
approx 30 Kg.
