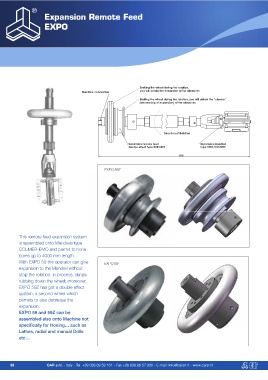

Expansion Remote Feed Horizontal Honing Machine

EXPO mod. LEO 120

DEPLIANT

Braking the wheel during the rotation,
Machine connection you will obtain the expansion of the abrasives
Braking the wheel during the rotation, you will obtain the “closure”
(decreasing of expansion) of the abrasives

Direction of Rotation

Expansion remote feed Expansion mandrel
double effect type EXPO59Z type EMO/COLMER
3000

EXPO 59Z

This remote feed expansion system
is assembled onto Mandrels type
COLMER-EMO and permit to hone
bores up to 4000 mm length.
With EXPO 59 the operator can give EXPO 59
expansion to the Mandrel without
stop the rotation, in process, simply
rubbing down the wheel; moreover,
EXPO 59Z has got a double effect
system, a second wheel which
permits to also decrease the
expansion.
EXPO 59 and 59Z can be
assembled also onto Machine not
specifically for Honing… such as
Lathes, radial and manual Drills
etc…
