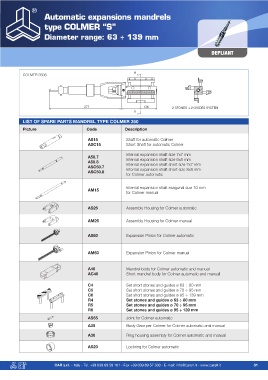

Automatic expansions mandrels Automatic expansions mandrels

type COLMER “S” type COLMER “S”
Diameter range: 44 ÷ 66 mm Diameter range: 63 ÷ 139 mm

DEPLIANT DEPLIANT

A
COLMER 350S
A

278 114 2 STONES + 2 GUIDES SYSTEM
A 277 136 2 STONES + 2 GUIDES SYSTEM
A
LIST OF SPARE PARTS MANDREL TYPE COLMER 66 LIST OF SPARE PARTS MANDREL TYPE COLMER 350

Picture Code Description

AS15 Shaft for automatic Colmer
ASC15 Short Shaft for automatic Colmer

Internal expansion shaft size 7x7 mm
A50.7
A50.8 Internal expansion shaft size 8x8 mm
ASC50.7 Internal expansion shaft short size 7x7 mm
ASC50.8 Internal expansion shaft short size 8x8 mm
for Colmer automatic

Internal expansion shaft esagonal size 10 mm
AM15
for Colmer manual

AS26 Assembly Housing for Colmer automatic

AM25 Assembly Housing for Colmer manual

AS60 Expansion Pinion for Colmer automatic

AM60 Expansion Pinion for Colmer manual

A40 Mandrel body for Colmer automatic and manual
AC40 Short mandrel body for Colmer automatic and manual

C4 Set short stones and guides ø 63 ÷ 80 mm
C5 Set short stones and guides ø 70 ÷ 95 mm
C6 Set short stones and guides ø 95 ÷ 139 mm
R4 Set stones and guides ø 63 ÷ 80 mm
R5 Set stones and guides ø 70 ÷ 95 mm
R6 Set stones and guides ø 95 ÷ 139 mm
AS55 Joint for Colmer automatic
A35 Body Gear per Colmer for Colmer automatic and manual

A30 Ring housing assembly for Colmer automatic and manual

AS20 Lockring for Colmer automatic
