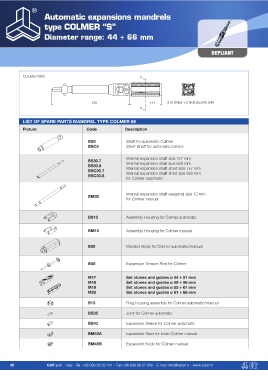

Automatic expansions mandrels Automatic expansions mandrels

type COLMER “S” type COLMER “S”
Diameter range: 44 ÷ 66 mm Diameter range: 63 ÷ 139 mm

DEPLIANT DEPLIANT

A
COLMER 66S A

278 114 2 STONES + 2 GUIDES SYSTEM
A 277 136 2 STONES + 2 GUIDES SYSTEM
A
LIST OF SPARE PARTS MANDREL TYPE COLMER 66 LIST OF SPARE PARTS MANDREL TYPE COLMER 350

Picture Code Description

BS5 Shaft for automatic Colmer
BSC5 Short Shaft for automatic Colmer

Internal expansion shaft size 7x7 mm
BS30.7 Internal expansion shaft size 8x8 mm
BS30.8 Internal expansion shaft short size 7x7 mm
BSC30.7 Internal expansion shaft short size 8x8 mm
BSC30.8
for Colmer automatic

Internal expansion shaft esagonal size 12 mm
BM30
for Colmer manual

BS10 Assembly Housing for Colmer automatic

BM10 Assembly Housing for Colmer manual

B20 Mandrel Body for Colmer automatic/manual

B50 Expansion Tension Rod for Colmer

M17 Set stones and guides ø 44 ÷ 51 mm
M18 Set stones and guides ø 49 ÷ 56 mm
M19 Set stones and guides ø 55 ÷ 61 mm
M20 Set stones and guides ø 61 ÷ 66 mm

B15 Ring housing assembly for Colmer automatic/manual

BS35 Joint for Colmer automatic
BS40 Expansion Sleeve for Colmer automatic

BM45A Expansion Gear for knob Colmer manual

BM45B Expansion Knob for Colmer manual
