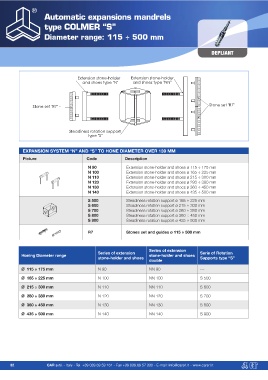

Page 12 - CAR - Levigatori ENG

Automatic expansions mandrels Mandrels type EMO

type COLMER “S”
Diameter range: 115 ÷ 500 mm

DEPLIANT

Extension stone-holder Extension stone-holder
and shoes type "N" and shoes type "NN"
EMO are very versatile Mandrels,
they use expansion heads type Mandrel Code Honing diameters Max length (standard)
range
COLMER so they have the same
Stone set "R7" Stone set "R7" honing diameters range. EMO
Mandrels are assembled onto vertical
and horizontal honing machines and
can achieve honing lengths until
Steadiness rotation support 4 mt., using personalized extension
type "S" bars which have “sphere” and
“flanged” connections (see pictures
EXPANSION SYSTEM “N” AND “S” TO HONE DIAMETER OVER 139 MM below).

Picture Code Description
N 90 Extension stone-holder and shoes ø 115 ÷ 175 mm
N 100 Extension stone-holder and shoes ø 165 ÷ 225 mm
N 110 Extension stone-holder and shoes ø 215 ÷ 300 mm B
N 120 Extension stone-holder and shoes ø 280 ÷ 380 mm A
N 130 Extension stone-holder and shoes ø 360 ÷ 450 mm
N 140 Extension stone-holder and shoes ø 435 ÷ 500 mm
S 500 Steadiness rotation support ø 165 ÷ 225 mm
S 600 Steadiness rotation support ø 215 ÷ 300 mm
S 700 Steadiness rotation support ø 280 ÷ 380 mm
S 800 Steadiness rotation support ø 360 ÷ 450 mm
S 900 Steadiness rotation support ø 435 ÷ 500 mm

R7 Stones set and guides ø 115 ÷ 500 mm
DETAIL A
DETAIL B
Series of extension
Series of extension Serie of Rotation
Honing Diameter range stone-holder and shoes DETTAGLIO B
stone-holder and shoes Supports type “S” SCALA 2 : 4.2
double
Ø 115 ÷ 175 mm N 90 NN 90 ---

Ø 165 ÷ 225 mm N 100 NN 100 S 500
Ø 215 ÷ 300 mm N 110 NN 110 S 600

Ø 280 ÷ 380 mm N 120 NN 120 S 700 A
B
Ø 360 ÷ 450 mm N 130 NN 130 S 800
DETAIL A DETAIL B
Ø 435 ÷ 500 mm N 140 NN 140 S 900

DETTAGLIO A
SCALA 2 : 4.2
